brief introduction:
PLC control panel and remote-control unit design contribute to easy operation.
Main advantage technology:
1.Auto-testing of components ratio
2.Auto control of pouring
3.Auto pressure control
4.Magnetic coupling, no temp. rising
details:
1.mix head:
*high precision L-shaped mix-head
*high precison impingement style mixing
*hydraulically controlled sequential operation
2. metering unit
*high precision axial piston pump,AV2VK
*variable output, robust manual adjustment via handweel with integral precision meauring scale
*magnetic coupling ensures no material leakage
*digital pressure gauge for controlling pressure
3.components storage and temperature conditioning
*pressurized and jacked tanks with visual level tube
*digital pressure gauge for control and visualization of pressure with max. and min. alarm value
*electrical resistance heater and cooling water solenoid valve for temperature conditioning operation
*chiller for option
4.electrical control system
* fully controlled by PLC

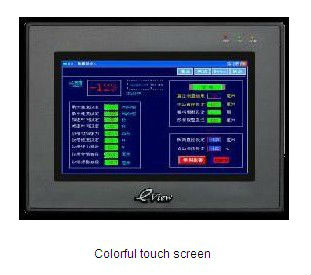

* colorful touched screen operator panel for simple and user friendly setting of machine parameter , status showing , and pouring time , etc
*alarm function with acoustic warning and text message
parameter
모델 | 출력 (1 : 1) g / s | 탱크 L | 전원 KW | |
| Min. | 맥스. | |||
| PH(R/F)-40 | 300 | 610 | 100 | 30 |
| PH(R/F)-100 | 500 | 1490 | 220 | 40 |
| PH(R/F)-200 | 1000 | 2800 | 280 | 60 |
| PH(R/F)-300 | 2000 | 4200 | 360 | 80 |
신청
Pipe insulations
Sandwich panel
refrigerator
steering wheel
seat and so on.
간략한 세부 사항
가공 유형 : 포밍 머신
조건 : 신규
제품 유형 : 폼 기계
원산지 : 중국 (본토)
브랜드 이름 : EMM
Voltage: 380V, According to customer requirements
Power(W): 30-80KW
Dimension(L*W*H): 2.4*2*2.1
Weight: 1.2T
Certification: CE, ISO TUV
Warranty: 1Year
애프터 서비스 제공 : 기술자가 해외 기계 가동 가능
name: sale PLC high pressure automatic foam making machinery for air filter
color: company settled
control: PLC
비용 효율성: 높은 비용 효율성
특성: 높은 출력, 작은 오류
Control: automatic control
Raw material:: isocyanate and polyol(ISO an
